TRAFFIC CONTROL

Arrow Boards

Trailer Mounted

Features

  • High-output amber LEDs are highly legible
  • Choose 15 lamps with 7 arrow display modes or 25 lamps with 12 arrow display modes
  • Environmentally safe operation
  • Easy to operate and maintain
  • Heavy-duty hand-winch with safety brake allows one person to raise board
  • Single locking device holds arrow board in place while operating or in travel position
  • Controller located safely away from work zone traffic
  • Weather-resistant control box with lockable slam-latch
  • Positive-drive voltage system applies power to lamps only when lit
  • Dual PTC resettable fuses, reverse polarity protection and low-voltage-disconnect system protect electrical components
  • 50-watt solar charging system features solid state voltage regulator with charge indicator
  • Arrow display has automatic dimming
  • Flashing rate of 30–40 per minute
  • Standard 15-inch tires
  • Lunette ring tow hitch for pintle hook
  • In travel position, unique design supports board without rear braces, reducing possibility of damage during transport
  • Durable powder-coat finish resists the elements
  • Meets MUTCD

Vehicle-Mounted Arrow Boards

  • Sizes: 30” x 60”, 36” x 72”
  • Panel Construction: all aluminum with internal stiffeners, solid rivets
  • Lamps: 15, and 25, low power high brightness LED’s
  • Mounting: steel electrically welded “A” frame with 180° rotation
  • Control: touch sensitive sealed buttons, LED mode and battery display, electric lift

  • Touch sensitive control keys
  • LED mode display
  • Rugged construction
  • Automotive style fuse w/spares
  • Built-in battery indicator w/auto shut down
  • Low profile design
  • Thin cable for easy routing
  • ‘Sleep’ feature to save on energy
  • One touch power lift

  • Sizes: 24” x 46”, 30” x 60”, 36” x 72”, 48” x 96
  • Panel Construction: all aluminum with internal stiffeners, solid rivets
  • Lamps: 13, 15, and 25, low power high brightness LED’s
  • Mounting: standard or low profile in hand or electric lift
  • Control: touch sensitive sealed buttons, LED mode and battery display, electric lift ready
  • Extras: available in double sided versions

Changeable Message Signs

Full Matrix Changeable Message Sign

  • Under 3000 pounds, can be towed by most vehicles
  • Standard 2-inch ball coupler tow-hitch
  • Hydraulic lift allows one person to easily raise and lower the message board
  • Tower rotates 360 degrees for optimal positioning
  • Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position

  • Self-contained onboard computer, no laptop required
  • Easiest programming in the industry
  • Preprogrammed text messages, symbols and graphics
  • Quick-reference instructions silkscreened on control panel, include most commonly performed tasks
  • Easily center each line of text
  • Internal clock facilitates built-in schedule programming
  • Multiple alphanumeric fonts make message clear and legible
  • Optical lenses and sunshades increase visibility and performance
  • Wide footprint provides stability in high wind, while optional outriggers add even more support
  • Multi-level password protection limits access to control software
  • Control box can be locked to prevent unauthorized access
  • Standard QWERTY keyboard is easily replaced

  • Energy-efficient operation results in long run times
  • Solar panels charge batteries automatically without intervention
  • Computer shuts down solar-panel charging system when batteries are fully charged, preventing damage
  • Unique system allows charging with solar panels and commercial power
  • Cooling fans protect sign cabinet and battery charger from overheating
  • Battery box can be locked to prevent unauthorized access

  • Individual character modules can be replaced easily
  • Standard 15-inch trailer tires
  • Heavy-duty bolt-on steel fenders can be replaced if damaged
  • Durable powder-coat finish resists the elements

Mini Matrix Changeable Message Sign

  • Under 2000 pounds, can be towed by most vehicles
  • Standard 2-inch ball coupler tow-hitch
  • Heavy-duty hand-winch allows one person to easily raise and lower the message board
  • Tower rotates 360 degrees for optimal positioning
  • Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position

  • Self-contained onboard computer, no laptop required
  • Easiest programming in the industry
  • Preprogrammed text messages, symbols and graphics
  • Quick-reference instructions silkscreened on control panel
  • Easily center each line of text
  • Internal clock facilitates built-in schedule programming
  • Multiple alphanumeric fonts make message clear and legible
  • Optical lenses and sunshades increase visibility and performance
  • Multi-level password protection limits access to control software
  • Control box can be locked to prevent unauthorized access
  • Standard QWERTY keyboard is easily replaced

  • Energy-efficient operation results in long run times
  • Solar panels charge batteries automatically without intervention
  • Computer shuts down solar-panel charging system when batteries are fully charged, preventing damage
  • Unique system allows charging with solar panels and commercial power
  • Cooling fans protect sign cabinet and battery charger from overheating
  • Battery box can be locked to prevent unauthorized access

  • Individual character modules can be replaced easily
  • Standard 15-inch trailer tires
  • Heavy-duty bolt-on steel fenders can be replaced if damaged
  • Durable powder-coat finish resists the elements

Mini Tree-Line Changeable Message Sign

  • Under 2000 pounds, can be towed by most vehicles
  • Standard 2-inch ball coupler tow-hitch
  • Heavy-duty hand-winch allows one person to easily raise and lower the message board
  • Tower rotates 360 degrees for optimal positioning
  • Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position

  • Self-contained onboard computer, no laptop required
  • Easiest programming in the industry
  • Preprogrammed text messages and arrows
  • Quick-reference instructions silkscreened on control panel, include most commonly performed tasks
  • Easily center each line of text
  • Internal clock facilitates built-in schedule programming
  • Optical lenses and sunshades increase visibility and performance
  • Multi-level password protection limits access to control software
  • Control box can be locked to prevent unauthorized access
  • Standard QWERTY keyboard is easily replaced

  • Energy-efficient operation results in long run times
  • Solar panels charge batteries automatically without intervention
  • Computer shuts down solar-panel charging system when batteries are fully charged, preventing damage
  • Unique system allows charging with solar panels and commercial power
  • Cooling fans protect sign cabinet and battery charger from overheating
  • Battery box can be locked to prevent unauthorized access

  • Individual character modules can be replaced easily
  • Standard 15-inch trailer tires
  • Heavy-duty bolt-on steel fenders can be replaced if damaged
  • Durable powder-coat finish resists the elements

Standards compliance

Three-Line Changeable Message Sign

  • Under 3000 pounds, can be towed by most vehicles
  • Standard 2-inch ball coupler tow-hitch
  • Hydraulic lift allows one person to easily raise and lower the message board
  • Tower rotates 360 degrees for optimal positioning
  • Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position

  • Self-contained onboard computer, no laptop required
  • Easiest programming in the industry
  • Preprogrammed text messages and arrows
  • Quick-reference instructions silkscreened on control panel, include most commonly performed tasks
  • Easily center each line of text
  • Internal clock facilitates built-in schedule programming
  • Optical lenses and sunshades increase visibility and performance
  • Wide footprint provides stability in high wind, while optional outriggers add even more support
  • Multi-level password protection limits access to control software
  • Control box can be locked to prevent unauthorized access
  • Standard QWERTY keyboard is easily replaced

  • Energy-efficient operation results in long run times
  • Solar panels charge batteries automatically without intervention
  • Computer shuts down solar-panel charging system when batteries are fully charged, preventing damage
  • Unique system allows charging with solar panels and commercial power
  • Cooling fans protect sign cabinet and battery charger from overheating
  • Battery box can be locked to prevent unauthorized access

  • Individual character modules can be replaced easily
  • Standard 15-inch trailer tires
  • Heavy-duty bolt-on steel fenders can be replaced if damaged
  • Durable powder-coat finish resists the elements

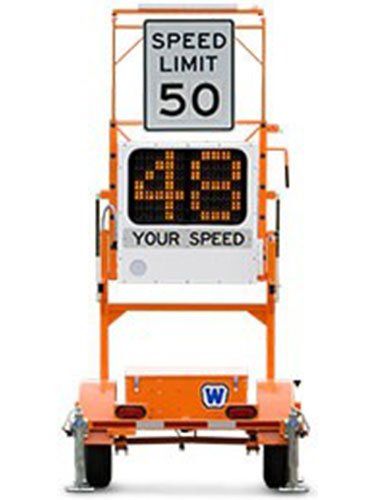

Radar Speed Trailer — Coachella Valley, CA — Tops N Barricades

Radar Trailer

Police Style Radar Trailer – Rental

Radar Speed Trailer

  • FEATURES:
    • Optical lenses and sun shades over 18-inch LED characters
    • Clearly displays speed in MPH
    • 20x24-inch regulatory speed limit sign included, choose from a variety of signs
    • Configurable activation, violation, and speed settings
    • Approach-only K-band radar measures speeds from 5 to 150 mph (8 to 240 km/h), at a distance of up to 1500 feet (450 meters)
    • Software-controlled selection of speed units, mph or km/h
    • Radar unit is CE compliant, FCC approved
    • Accepts accessory warning devices such as a strobe light & audio alarm
    • Extended height increases visibility
    • Compact and easily portable
    • Under 1000 pounds, can be towed by most vehicles
    • Standard 2-inch ball coupler tow-hitch
    • Quick setup and takedown
    • Charge batteries with solar panel or standard commercial power
    • Locking battery and control boxes

Solar Traffic Beacon

Amber Solar Powered LED Traffic Beacon — Coachella Valley, CA — Tops N Barricades

Solar Powered LED Traffic Beacon – Amber

This solar recharged flashing yellow beacon will call a driver’s attention to points of potential conflict such as work zones 24 hours a day. It is especially suited for places where AC power is not available.

  • FEATURES:
    • Solar recharged.
    • Can operate indefinitely when properly installed in most areas
    • Solid state electronic control
    • Over-charge protection during bright summer days
    • Low-charge protection for maximizing battery life
    • Adjustable height
    • Horizontal and vertical adjustment of solar array
    • Lockable battery box
    • 12 inch lens diameter
  • SPECIFICATIONS:

    Height:

    101” travel position

    138” extended

    Battery Enclosure:

    12” x 25” x 33”: (incl. handles)

    Batteries:

    Not incl. Can hold two group 27 12V

    Lamp(s):

    LED Amber 18 watt

    Solar Collector:

    30 watt, tilting, detachable optional: 50 watt

    Electronics:

    Sealed circuit, fully fused, energy efficient

Red Solar Powered LED Traffic Beacon — Coachella Valley, CA — Tops N Barricades

Solar Powered LED Traffic Beacon – Red

This solar recharged flashing red beacon will call a driver’s attention to points of potential conflict such as work zones 24 hours a day. It is especially suited for places where AC power is not available.

  • FEATURES:
    • Solar recharged.
    • Can operate indefinitely when properly installed in most areas
    • Solid state electronic control
    • Over-charge protection during bright summer days
    • Low-charge protection for maximizing battery life
    • Adjustable height
    • Horizontal and vertical adjustment of solar array
    • Lockable battery box
    • 12 inch lens diameter
  • SPECIFICATIONS:

    Height:

    101” travel position

    138” extended

    Battery Enclosure:

    12” x 25” x 33”: (incl. handles)

    Batteries:

    Not incl. Can hold two group 27 12V

    Lamp(s):

    LED Red 18 watt

    Solar Collector:

    30 watt, tilting, detachable optional: 50 watt

    Electronics:

    Sealed circuit, fully fused, energy efficient
