PROVIDING BARRICADES & BARRIERS FOR COACHELLA VALLEY

• Durable plastic barricades suitable for a variety of different applications.
• A-Frame barricade with 10' plastic rail.

• Length 2-meter (6.5 –ft.)
• Height is 43 inches
• Steel tubing of 1.5” O.D., 16 gauge
• 16 gauge vertical uprights, inserted into frames before welding
• Hot dip galvanized finish for best protection of steel (link)

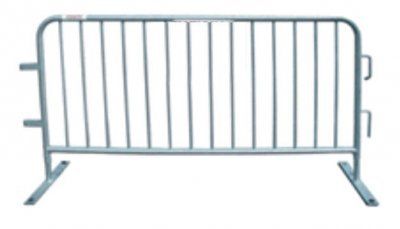

• Flat Bases ideal for circumstances when crowds will be walking parallel to barriers
• Optional rubber inserts on bases to also be used indoors

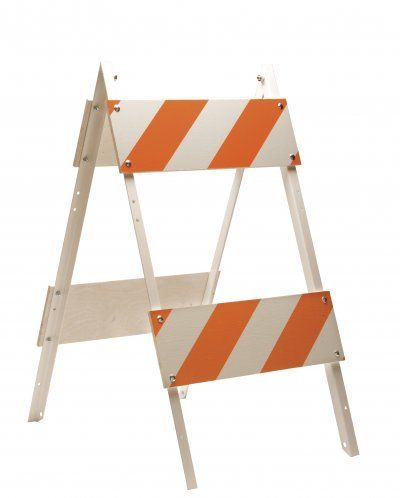

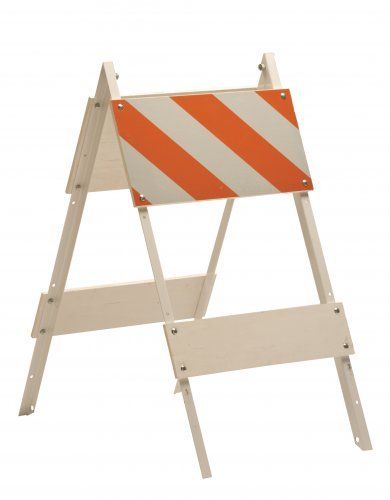

Wood Barricade Specs Type I & II

• The first and finest NCHRP-350 approved steel leg and plywood panel barricade.
• Legs are available either galvanized or enamel painted for maximum corrosion protection.
• Boards have high pressure, roller applied, self-adhesive reflective sheeting to conform with all local, state and federal regulations.
• Barricades are assembled with 1/4" by 1" galvanized carriage bolts with nuts and (2) truss-head aluminum hinge pins or 1/2" hinge nuts and bolts, available with optional brass grommet liner.
• Hinge holes are enlarged to accommodate 1/2" flasher mounting bolts.

• The first and finest NCHRP-350 approved steel leg and plywood panel barricade.
• Legs are available either galvanized or enamel painted for maximum corrosion protection.
• Boards have high pressure, roller applied, self-adhesive reflective sheeting to conform with all local, state and federal regulations.
• Barricades are assembled with 1/4" by 1" galvanized carriage bolts with nuts and (2) truss-head aluminum hinge pins or 1/2" hinge nuts and bolts, available with optional brass grommet liner.
• Hinge holes are enlarged to accommodate 1/2" flasher mounting bolts.

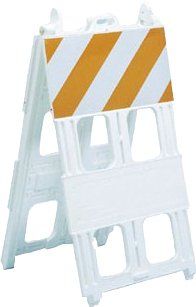

• NCHRP-350 approved steel leg and plastic panel barricades.
• High impact resistant, unique "waffle" pattern optimizes board strength and rigidity.
• High density copolymer polyethylene material is capable of withstanding extremely variable environmental conditions.
• All pre-sheeted panels are flame treated.
• Legs are enamel painted for maximum corrosion protection.
• Barricades are assembled with 1/4" by 1" galvanized carriage bolts with nuts and (2) truss-head aluminum hinge pins or 1/2" hinge nuts and bolts, available with optional brass grommet liner.
• Hinge holes are enlarged to accommodate 1/2" flasher mounting bolts.

• Latest technology in stress and impact absorption.
• Waffle-board design on back.
• Recessed areas for sheeting.
• Unique recessed molded light mount brackets sized for standard bolts.
• Protective anti-skid/wear tabs on bottom of legs.
• Non-shifting stacking lugs.
• Capable of internal sand ballasting.
• Custom name molding available
• Barricade lays flat upon impact.
• Holds many sizes of signs.
• Resistant to extreme temperatures.
• Convenient molded carry-handle.
• Tested and certified to meet the crashworthy requirements of NCHRP-350

• The first and finest NCHRP-350 approved steel leg and plywood panel barricade.
• Legs are available either galvanized or enamel painted for maximum corrosion protection.
• Boards have high pressure, roller applied, self-adhesive reflective sheeting to conform with all local, state and federal regulations.
• Barricades are assembled with 1/4" by 1" galvanized carriage bolts with nuts and (2) truss-head aluminum hinge pins or 1/2" hinge nuts and bolts, available with optional brass grommet liner.
• Hinge holes are enlarged to accommodate 1/2" flasher mounting bolts.

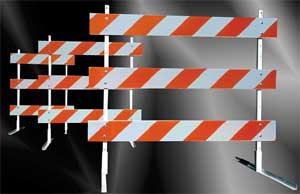

• The first and finest NCHRP-350 approved steel and plywood Type III barricades.
• Durable, hot rolled high carbon steel construction with universal mounting holes.
• Easy to assemble, bolt together, very portable.
• Unique base design allows for short term or permanent securing.
• Weather resistant baked enamel paint.
• Accommodates reflective sheeting on both sides of panels and accepts two flashing lights.
• Multiple barricades can be joined in series.
• Excellent high wind stability.

• The first and finest NCHRP-350 approved steel and plywood Type III barricades.
• Durable, hot rolled high carbon steel construction with universal mounting holes.
• Easy to assemble, bolt together, very portable.
• Unique base design allows for short term or permanent securing.
• Weather resistant baked enamel paint.
• Accommodates reflective sheeting on both sides of panels and accepts two flashing lights.
• Multiple barricades can be joined in series.
• Excellent high wind stability.

Our water filled plastic safety barriers are available in white or orange and are easily installed where security and safety are important.

The advantages to these water filled plastic safety barriers are they are exceptionally visible, resist fading, two smooth surface areas per side for company logos or reflective tape labels, stackable space saving design for shipping and storing, no metal screws or moving parts.

72" L x 24"W x 42" H

162 gallons filled to top / 150 gallons filled 10" below top

Approx. 100 lbs empty

Approx. 1400 lbs filled

Available Colors: Orange and White
